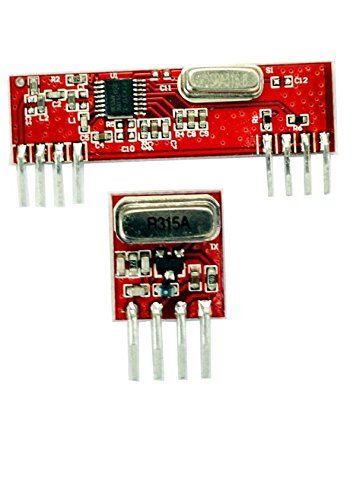

The Receiver is an ASK Hybrid receiver module. It is a effective low cost solution for using 433 / 434 MHz. The Transmitter is an ASK hybrid transmitter module. It is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.
Low Power Consumption
Easy For Application
Range in open space (Standard Conditions) : 500 Meters (with Antenna) / 100-200 Meters (without Antenna)
RF ASK Transmitter
Frequency Range : 433.92 MHz
Supply Voltage : 5V
OutPut Power : 4 ~ 12 dBm
Standard Operating Voltage : 5V
RF ASK Receiver
Receiver Frequency : 433.92 MHz
Typical Sensitivity : 105 dBm
Supply Voltage : 5V
Supply Current : 3.5 mA
Standard Operating Voltage : 5V
Applications
Remote Controls
Automation System
Wireless Security System
Sensor Reporting
Car Security System
Remote Keyless Entry
Supports All Wireless Applications using 8051/AVR/PIC/ARM Microcontrollers (Using HT12E - HT12D Pair)
