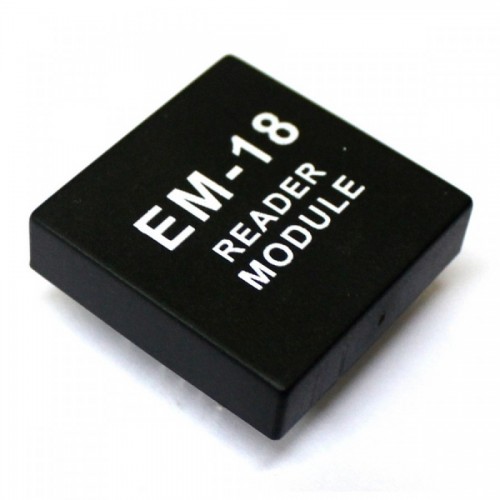

The EM-18 RFID Reader module operating at 125kHz is an inexpensive solution for your RFID based application. The Reader module comes with an on-chip antenna and can be powered up with a 5V power supply. Power-up the module and connect the transmit pin of the module to recieve pin of your microcontroller. Show your card within the reading distance and the card number is thrown at the output. Optionally the module can be configured for also a weigand output.
Features:
· Reading Distance: 6-10 cm
· Dimesntion: 40mmx20mmx8mm (LxHxW)
· Frequency:125kHz
· Compatible Card codes:Manchester64-bit,modules64
· Current Rating: 35mA (Max)
· Operating Voltage:4.6V - 5.4VDC
Package Contents: EM-18 RFID module only.
Note: A compatible RFID Card can be purchased seperately from our store.
