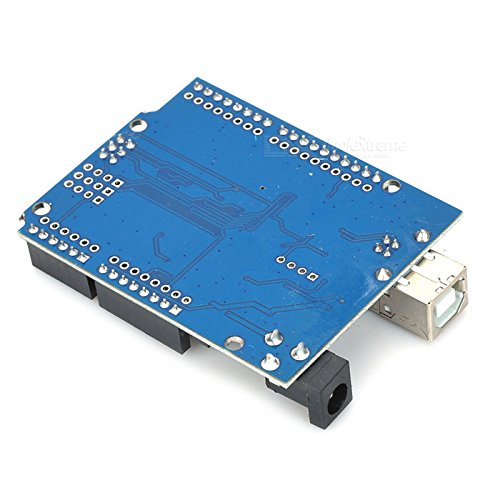

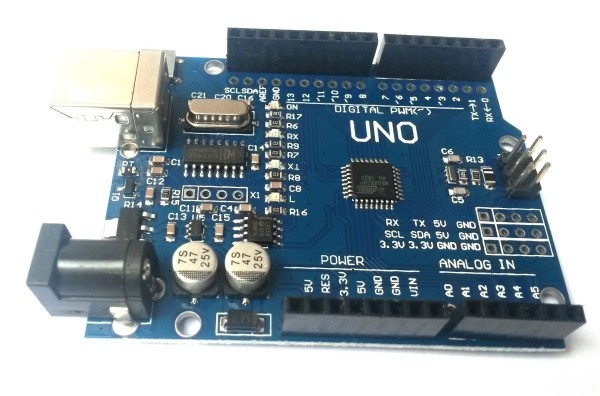

UNO R3 SMD is the open source Embedded Development board based on Atmega328 SMD Package Microcontroller. Because Atmel is moving more and more of their production capacity to surface mount ICs, the DIP packaged ATmega is becoming more and more difficult to get. To keep up with demand, we now offer the Uno R3 with an SMD ATmega. The board is identical to the PTH version of the Uno, but you won't be able to remove the ATmega without some hot-air. This change shouldn't affect most users
Specifications:-
Microcontroller : ATmega328 SMD.
Operating Voltage : 5V.
Supply Voltage recommended : 7-12V DC.
Digital I/O Pins : 14 (of which 6 provide PWM output).
Analog Input Pins : 6.
DC Current per I/O Pin : 40 mA.
DC Current for 3.3V Pin : 50 mA.
Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader.
SRAM : 2 KB (ATmega328).
EEPROM : 1 KB (ATmega328).
Clock Speed : 16 MHz.
