Description

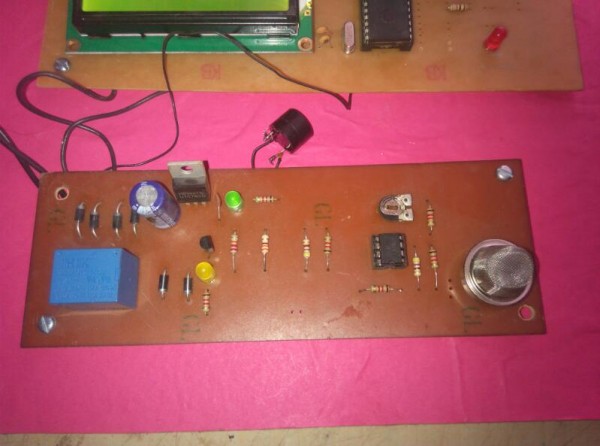

LPG gas is supplied in pressurized steel cylinders. As this gas is heavier than air, when it leaks from a cylinder it flows along floor and tends to settle in low spots such as a basement. This can cause fire or suffocation if not dealt with. Here is a circuit that detects the leakage of LPG gas and alerts the user through audio-visual indications. This LPG Gas Sensor (MQ6), ideal sensor for use to detect the presence of a dangerous Liquefied petroleum gas (LPG) and it has high sensitivity to propane, butane, isobutene, natural gas. The sensor can also be used to detect combustible gases, especially methane. This circuit can detect leakages in your Home, car or in a service station, storage tank environment. This unit can be easily implemented to industrial level by upgrading its ranges.
This project is designed to detect the LPG from 200parts per million (PPM) to 10,000 PPM. Whenever there is LPG concentration of 1000 ppm (parts per million) in the area, the OUT pin of the sensor module goes high. This signal drives timer IC 555, which is wired as an a-stable multi vibrator. The multi vibrator basically works as a tone generator. A buzzer is connected to produce audible alert signal.
